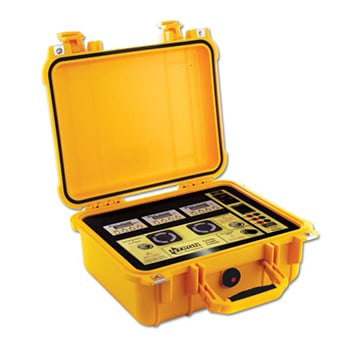

DwyerOmegaYellow-Box-Oxygen-Analyzer
03-571
Yellow Box Oxygen Analyzer with Zirconia Sensor,, 0 to 25% and 0 to 1000 PPM ranges, with a 6 mm compression fitting. Ideal for portable industrial oxygen monitoring.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Applications:Gases, Industrial and Manufacturing, Medical Equipment, Pharmaceutical
Calibration Note:Internal Regulation: 0.2 MPa (Up to 2 barg / 29 psig) Sample pressure and flow set at 0.03 MPa (0.3 barg / 5 psig); 0.55 SCFH (250 ml/m)
Electrical Output:4 to 20 mA
Enclosure Ratings:IP67
Housing Material:Polypropylene
Lifetime:up to 5 yr
Operating Humidity:0 to 95% RH, non-condensing
Operating Temperature, Max:60 °C
Operating Temperature, Min:-25 °C
Process Connection Size:6 mm
Process Connection Type:Compression Fitting
Resolution:1 ppmV or 0.01 %
Response Time:< 15 seconds @ 25 °C (77 °F) within selected range
Sample Pressure:Up to 2 barg (29 psig) internal preset
Sensitivity:1 ppmV or 0.01 %
Sensor Type:Zirconia (ZrO2)
Series ID:Yellow-Box-Oxygen-Analyzer
Shelf Life:unlimited
Supply Power Type:AC
Supply Voltage:85 to 264 Vac / 50 Hz
Volumetric Flow Rate, Max:500 ml/min
Width:300 mm
