DwyerOmegaSenz-Tx-Oxygen-Transmitter
02-663

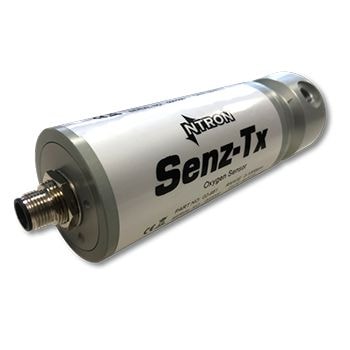

SenzTx 102 Oxygen transmitter with Zirconia OC-72 element, 0 to 96% O₂ range, flowthrough connection. Ideal for industrial gas monitoring with high accuracy and durability.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Applications:Chemical Refineries, Gases, Semi-Conductor
Cable Length:1 m
Data Interface:RS485 Modbus
Diameter:47 mm
Electrical Output:4 to 20 mA
Enclosure Ratings:IP66
Height:156.2 mm
Housing Material:Chromated Aluminum
Operating Humidity:0 to 95% RH, non-condensing
Operating Pressure, Max:1100 mBar
Operating Pressure, Min:900 mBar
Power Consumption:2.4 W
Measurement Pressure Type:Absolute
Response Time:< 15 seconds @ +25 °C (+77 °F) within selected range
Sensitivity:1 ppmV (ppm ranges) / 0.01 % (% ranges)
Series ID:Senz-Tx-Oxygen-Transmitter
Supply Power Type:DC
Supply Voltage:24 Vdc
문서 및 매뉴얼
Senz-Tx-Oxygen-Transmitter Data Sheet
PDF
NT_1-SenzTx-EC-4-20mA_shortformusermanual.pdf - nt_1_senztx_ec_4_20ma_shortformusermanual_pdf_ntron_pdf
PDF
NT_2-SenzTx-Zr-0-10V_shortformusermanual.pdf - nt_2_senztx_zr_0_10v_shortformusermanual_pdf_ntron_pdf
PDF
NT_SenzTx-ZrOxygenTransmitter_usermanual.pdf - nt_senztx_zroxygentransmitter_usermanual_pdf_ntron_pdf
PDF
