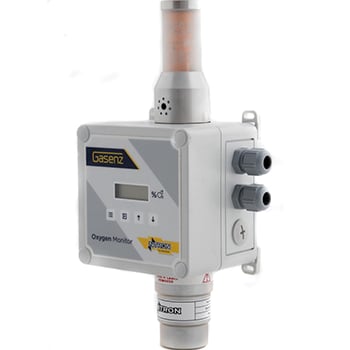

DwyerOmegaGasenz-Ambient-Oxygen-Monitor
02-354
Gasenz Oxygen Monitor with Zirconia Sensor, 0 to 25% range, wall/vertical mount, LCD display with audible and visual alarms. Ideal for continuous oxygen monitoring in oxygen deficient environments for personnel protection.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Applications:Chemical Refineries, Gases, Industrial and Manufacturing, Laboratories
Calibration Interval:12 months
Control Output:SPST Relay
Display Type:LCD
Gas Measurement Range:0 to 25 %
Housing Material:ABS
Indicator Type:LCD, audible and visual alarms
Lifetime:up to 5 yr
Mounting Orientation:Wall Mount
Operating Humidity:0 to 95% RH, non-condensing
Operating Pressure, Max:1100 mBar
Operating Pressure, Min:900 mBar
Operating Temperature, Max:60 °C
Operating Temperature, Min:-25 °C
Output Detail:1 off relay, dry contact 5 Amp-rated (2 relay outputs assigned to control light tower indicator)
Output Signal:4 to 20 mA
Power Consumption:7.2 W
Resolution:0.0001
Response Time:< 15 seconds within selected range @ 25 °C (77 °F) within selected range
Sensor Length:60 mm
Series ID:Gasenz-Ambient-Oxygen-Monitor
Shelf Life:unlimited
Supply Voltage:80 to 240 Vac
